Wire Flame Spray System

Wire Flame Spray System

Parat Technologies is making the wire flame spray torches that can be configured for machine mounted or hand held.

Our Product range includes
  • 11P – A Torch suitable for Low melting points wires.
  • 12P – A Torch suitable for Low and high melting points wires.
  • 14P – A Torch suitable for Low and High melting points wires with Push trigger to stop/start wire feeding.
  • 12P Electric Drive – A Torch with electric motor drive.
Advantage
  • Economical
  • Easy to operate
  • Controlled flow system for gases and air.
  • Extension nozzles for inner or deep surface area coating can be used.
Applications
  • Zinc and aluminum for anti-corrosion coating
  • Molybdenum for bond coating
  • Stainless steel and Nickel for anticorrosion and wear
  • NiAl for wear and oxidation resistance

Our Flame Spray Models

FLAME SPRAY TORCH MODEL IDENTICAL FEATURE COMMON FEATURES
(For 12P and 14P) 		COMMON FEATURES
(For 11P,12P and 14P)
11P
12P
14P
Used in soft wires only
Wires – Aluminum, Zinc and Babbitt etc
High Speed Gear set is used
Cam Assembly is used for wire feeding
Push trigger is used for wire feeding
High speed and Standard both gear set can be used
Used in Soft and Hard wires both
Wires – Steel, Copper, Molybdenum, Aluminum, Zinc and Babbitt etc
Combustion gases – Acetylene or LPG/Propane and Oxygen
Spray Material – Wire
Operation – Manual
Carrier Gas - Air
Wire size – 1/8’’ (3.17mm) and 3/16’’ (4.76 mm)
Weight – 2.6 kg
Mounting stud for fixing on stand
12P Electric Drive
Drived by electric motor
Machine mounted
-
-

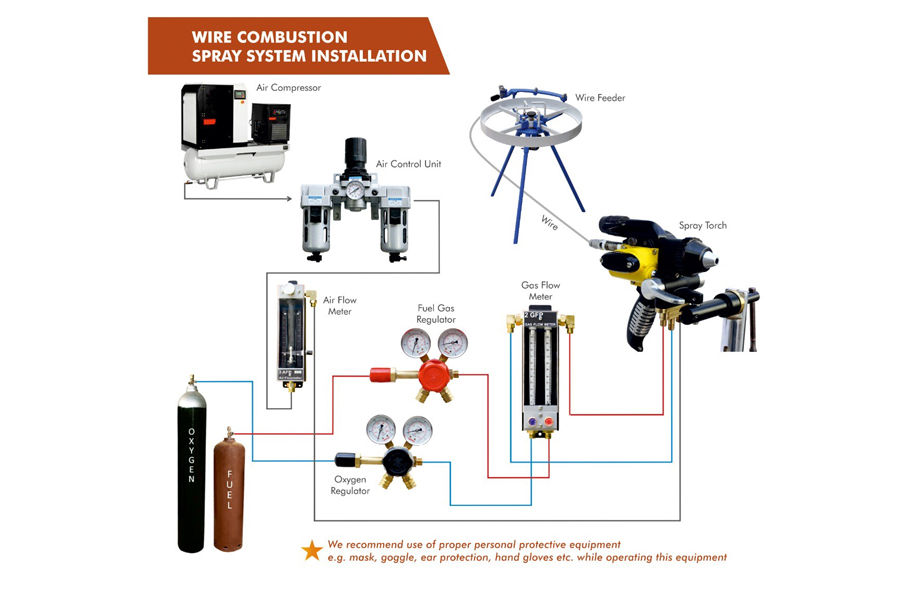

Flame Spray equipment
  • Gas Flow Meter – 2GF type
  • Air Flow Meter - flow controlled
  • Gas Control unit – Double Stage Regulator
  • Air Control Unit – Air filter provided
  • Hose Set – Customized hose length also can be provided
  • Gun Stand - Adjustable
  • Wire reel stand with straightener – Can be dissembled in small packing.
